FACTORY 4.0 PROCESS VISUALIZATION SOLUTIONS

The RoboLive® Client offers easy-to-use process visualization based on both planned and actual production data.

MEET THE INDUSTRY-LEADING SOLUTION FOR VISUALIZING JOINING PROCESS DATA.

Process visualization is one of RoboLive®’s core features. Your custom software client comes prepared with your products ready to view in an intuitive 3d viewer, with process paths and points displayed in place.

Each process point is linked to the Parameter Table below, so its easy to move from a visual view to an up-close look at finer data. Clicking through the Timeline will change the viewer to show past data, allowing for a complete picture of changes or trends.

Product Model

View your product models in 3D, with
nominal and actual process data overlaid.

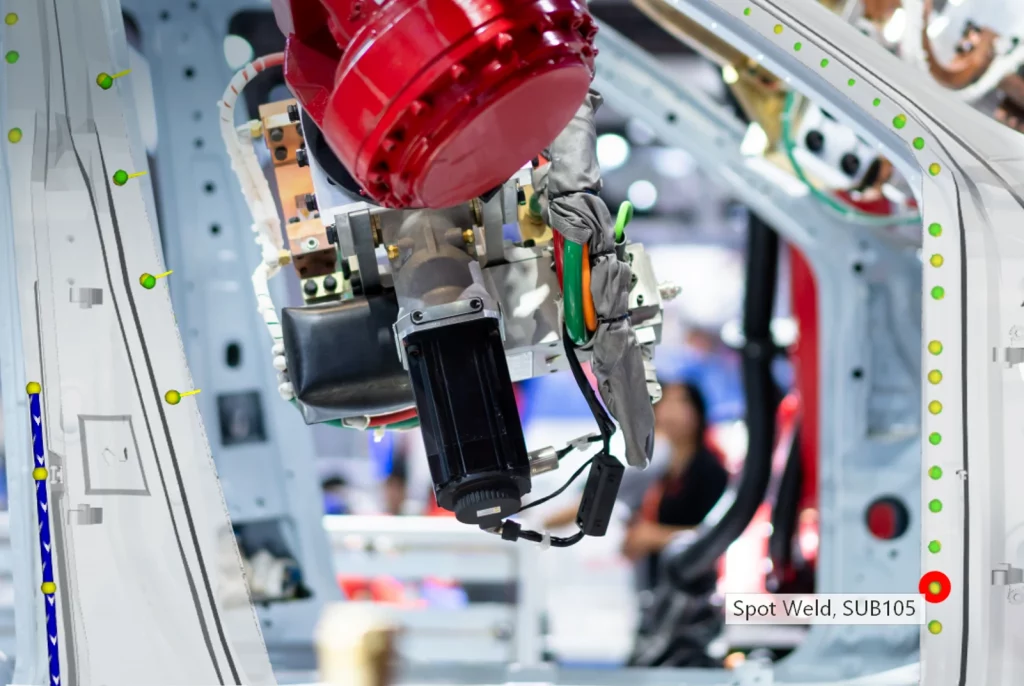

Process points

Processes like spot welds are shown in place.

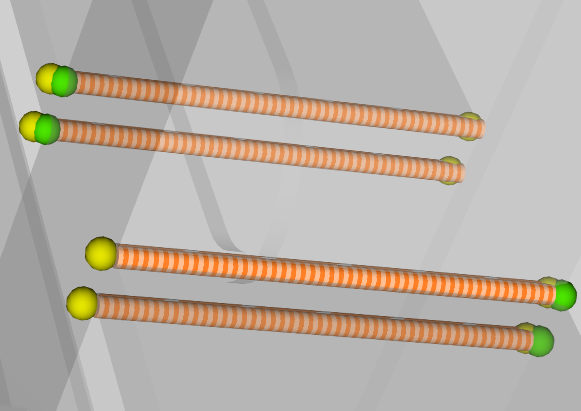

Paths

View the real path of processes like glue or
laser, with changes in program visible.

Labels

Parameter data is available in custom labels.

Timeline

Comparison of previous
plant states and tracking
of changes.

COMPLEX DATA, EASY VISUALIZATIONS.

Robotic joining process data is hard to understand, and can difficult to access. The RoboLive® Visual Client is designed to make it easy to see and understand what your production robots are doing.

RoboLive®‘s Process Visualization power is twofold: data is displayed in the Visualization window, with more information available in a traditional table format below. It allows you to easily keep track of complicated data like parameters and process IDs, while also being able to easily relate information to 3D space and real products.

EVERY DETAIL AT YOUR FINGERTIPS:

PATHS & DIRECTIONS

Process points and paths are displayed with tool orientation, path direction, and more easily visible.

PRODUCT MODELS

RoboLive® Client includes multiple ways to visualize your products in 3D, including part-specific coloring.

PARAMETERS

Associated data or process parameters can be shown in the visualization as customizable tooltips.
friday
monday
FRIDAY
MONDAY

SEE EVERY CHANGE ON THE PRODUCTION TIMELINE.

Process Visualization is created from your planned data, product models, and robot backups. Because the RoboLive® client saves past backups, it’s easy to view and compare past plant states or evaluate changes.

The RoboLive® Client shows every past archived plant state on a simple timeline that can be navigated in a few clicks. Data sets can be automatically compared, with differences or changes highlighted.

GET YOUR CONSULTATION.

We want you to see the benefits of RoboLive® for yourself. Reach out today for a free consultation or custom demo download of our software.
